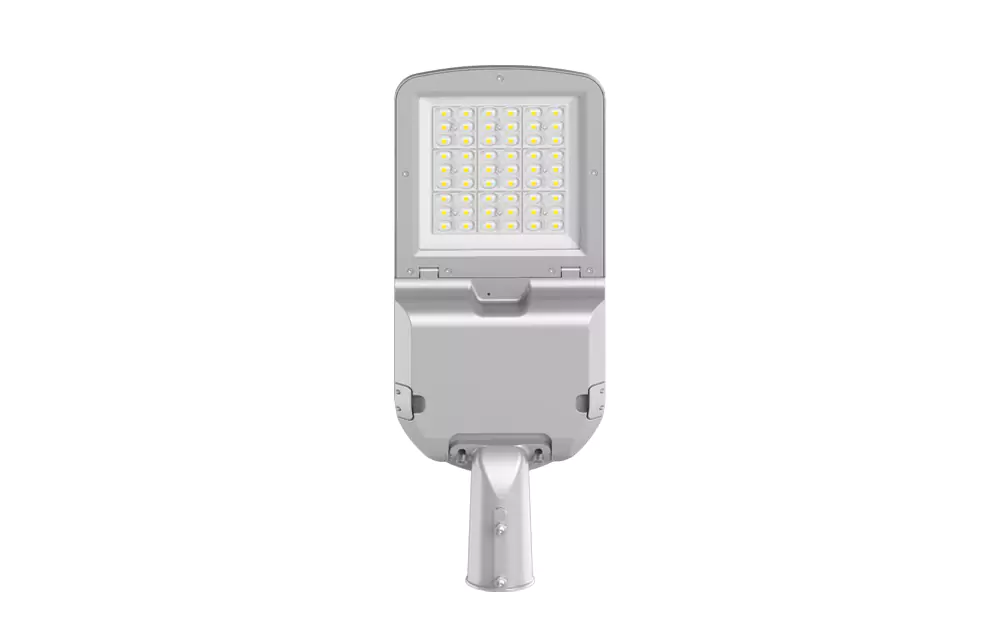

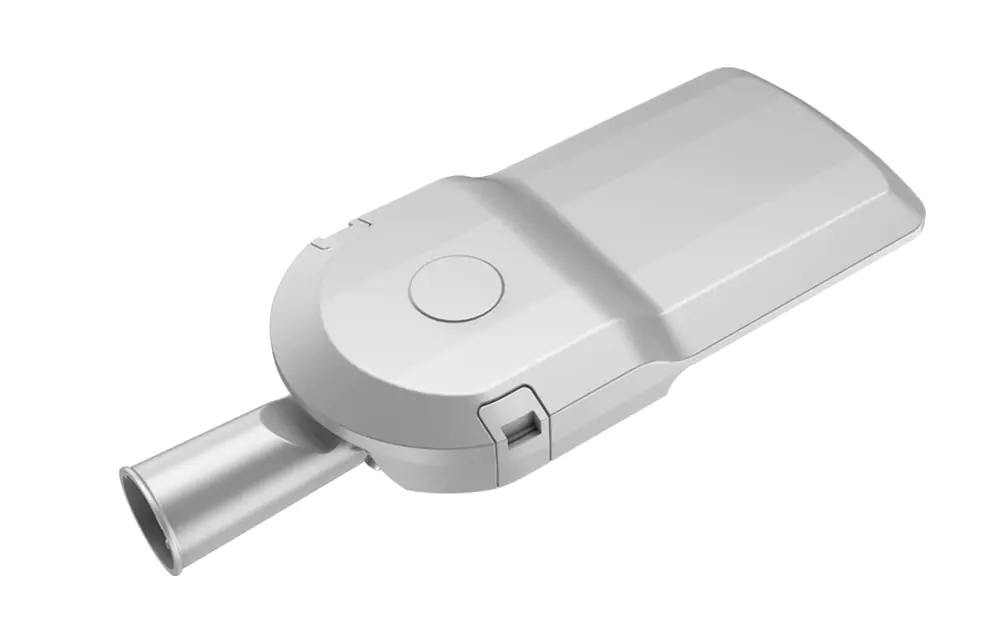

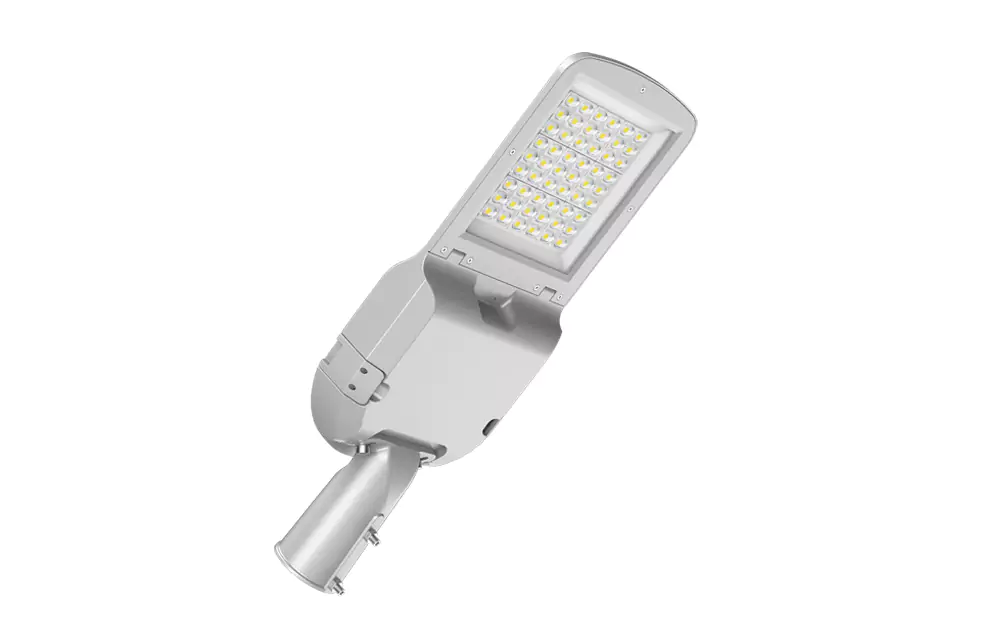

UCS1 Series LED Street Light

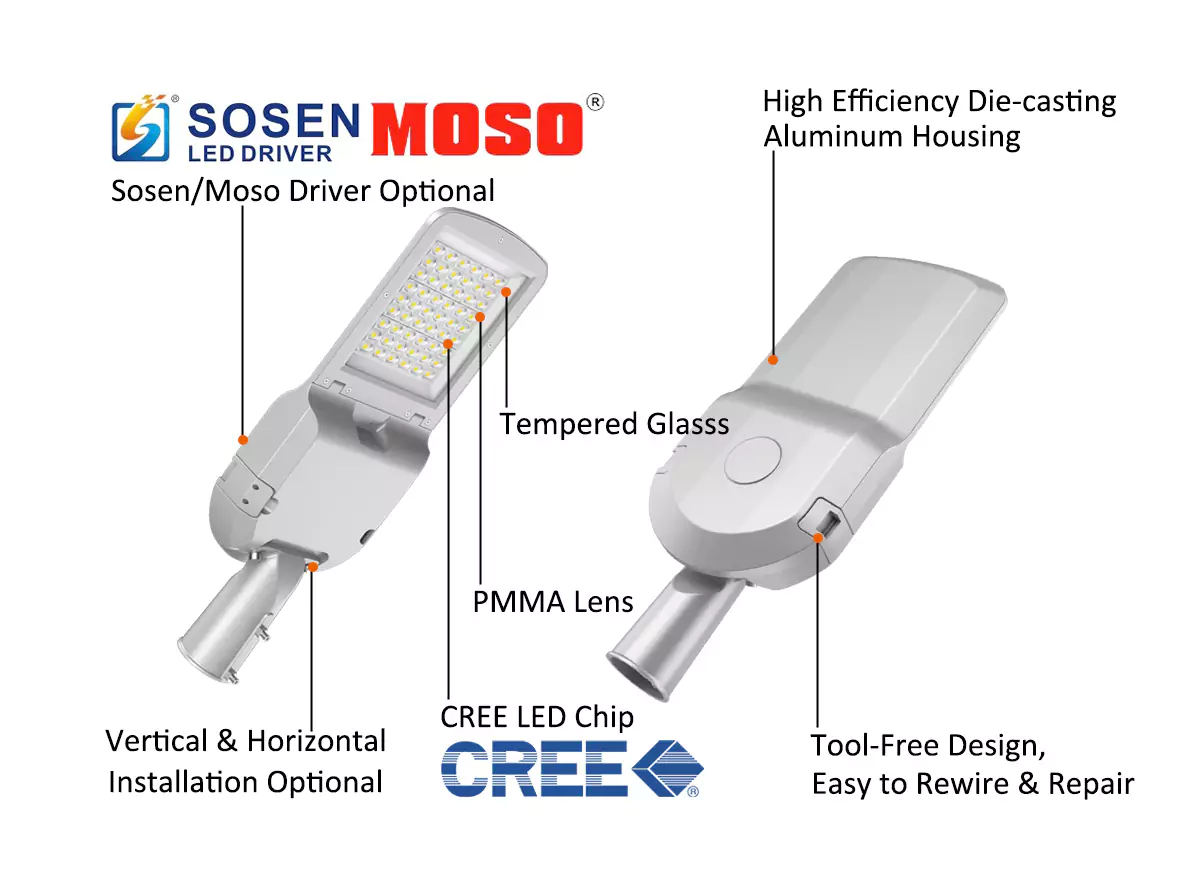

Key Features:
- High bright CREE LED chip, 180LM/W.
- Sosen/Moso driver used, excellent working.
- T2M, T2S, T3M, T3S, T4S optics for your different applications.
- PMMA lens and tempered glass used, best on UV resistance.
- Tool-free design, easy to rewire and repair.
- Die-cast aluminum alloy housing with good heat dissipation.
Specification
| Model No. | SP-S40W-UCS1 | SP-S50W-UCS1 | SP-S60W-UCS1 | SP-S80W-UCS1 | SP-S100W-UCS1 |
| Power | 40W | 50W | 60W | 80W | 100W |
| LED Chip Brand | CREE | CREE | CREE | CREE | CREE |
| Power Driver Brand | Sosen/Moso | Sosen/Moso | Sosen/Moso | Sosen/Moso | Sosen/Moso |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 | >70 | >70 |
| Beam Angle | T2M, T2S, T3M, T3S, T4S | T2M, T2S, T3M, T3S, T4S | T2M, T2S, T3M, T3S, T4S | T2M, T2S, T3M, T3S, T4S | T2M, T2S, T3M, T3S, T4S |
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | 180LM/W | 180LM/W | 180LM/W | 180LM/W | 180LM/W |
| Initial Flux | 7, 200LM | 9, 000LM | 10, 800LM | 14, 400LM | 18, 000LM |
| Working Environment | -40℃~+40℃ | -40℃~+40℃ | -40℃~+40℃ | -40℃~+40℃ | -40℃~+40℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| Fixture Dimension | 493*174*108MM | 493*174*108MM | 562*200*108MM | 562*200*108MM | 607*240*108MM |
| Installation Tube | Φ60MM | Φ60MM | Φ60MM | Φ60MM | Φ60MM |
| Material | Die-cast Aluminum + Tempered Glass | ||||
| Model No. | SP-S120W-UCS1 | SP-S150W-UCS1 | SP-S180W-UCS1 | SP-S200W-UCS1 | SP-S240W-UCS1 |
| Power | 120W | 150W | 180W | 200W | 240W |
| LED Chip Brand | CREE | CREE | CREE | CREE | CREE |
| Power Driver | Sosen/Moso | Sosen/Moso | Sosen/Moso | Sosen/Moso | Sosen/Moso |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 | >70 | >70 |
| Beam Angle | T2M, T2S, T3M, T3S, T4S | T2M, T2S, T3M, T3S, T4S | T2M, T2S, T3M, T3S, T4S | T2M, T2S, T3M, T3S, T4S | T2M, T2S, T3M, T3S, T4S |
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | 180LM/W | 180LM/W | 180LM/W | 180LM/W | 180LM/W |
| Initial Flux | 21, 600LM | 27, 000LM | 32, 400LM | 36, 000LM | 43, 200LM |
| Working Environment | -40℃~+40℃ | -40℃~+40℃ | -40℃~+40℃ | -40℃~+40℃ | -40℃~+40℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| Fixture Dimension | 607*240*108MM | 680*260*108MM | 680*260*108MM | 766*300*108MM | 766*300*108MM |
| Installation Tube | Φ60MM | Φ60MM | Φ60MM | Φ60MM | Φ60MM |
| Material | Die-cast Aluminum + Tempered Glass | ||||
| Model No. | Power | Fixture Dimension |
| SP-S40W-UCS1 | 40W | 493*174*108MM |
| SP-S50W-UCS1 | 50W | 493*174*108MM |
| SP-S60W-UCS1 | 60W | 562*200*108MM |
| SP-S80W-UCS1 | 80W | 562*200*108MM |
| SP-S100W-UCS1 | 100W | 607*240*108MM |
| SP-S120W-UCS1 | 120W | 607*240*108MM |
| SP-S150W-UCS1 | 150W | 680*260*108MM |
| SP-S180W-UCS1 | 180W | 680*260*108MM |
| SP-S200W-UCS1 | 200W | 766*300*108MM |
| SP-S240W-UCS1 | 240W | 766*300*108MM |
| LED Chip Brand | CREE |
| Power Driver Brand | Sosen/Moso |
| Color Temperature | 2700-6500K |
| Color-rendering Index | >70 |
| Beam Angle | T2M, T2S, T3M, T3S, T4S |
| Input Voltage | AC 100-277V |
| Power Factor | >0.95 |
| Luminous Efficiency | 180LM/W |
| Working Environment | -40℃~+40℃ |
| Life Span | >50, 000Hrs |
| IP Rating | IP66 |
| Installation Tube | Φ60MM |
| Material | Die-cast Aluminum + Tempered Glass |

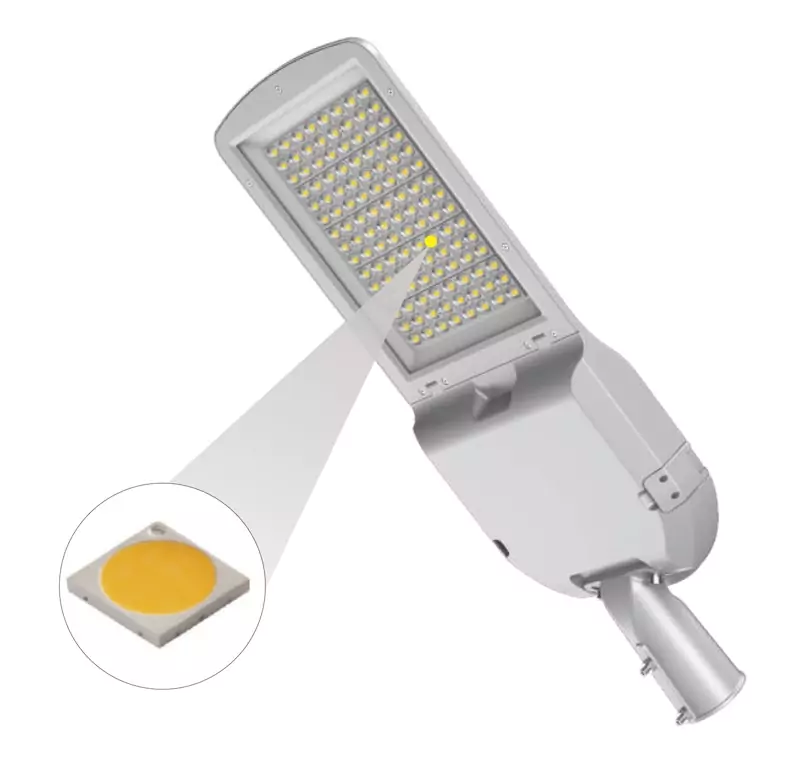

High Bright CREE LED Chip
180LM/W, high efficiency

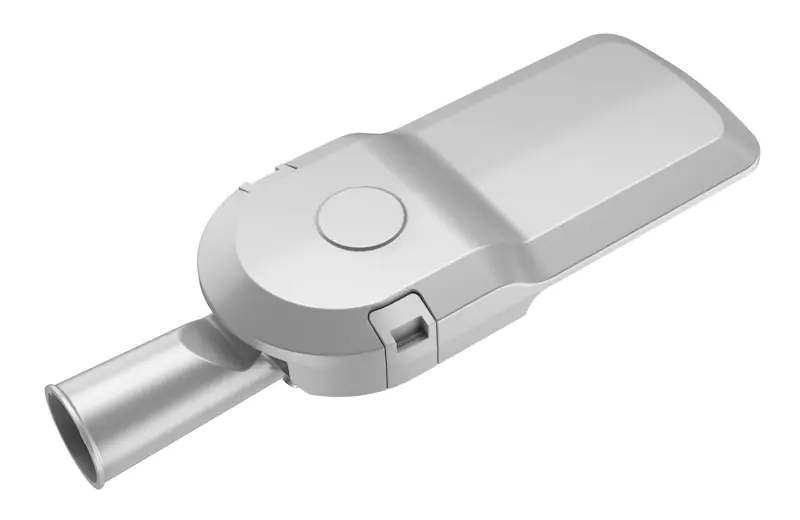

Tool-free Design, Easy to Rewire and Repair
Smooth Back Cover Design, Anti-Dust And Bird Droppings

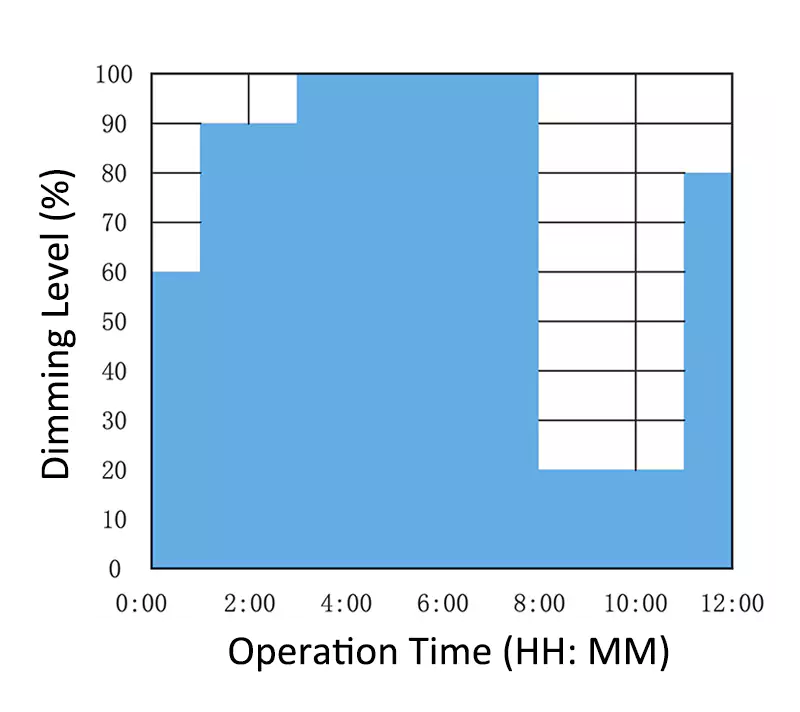

Auto Dimming & Timing Function
Easy to operate, more saving for you

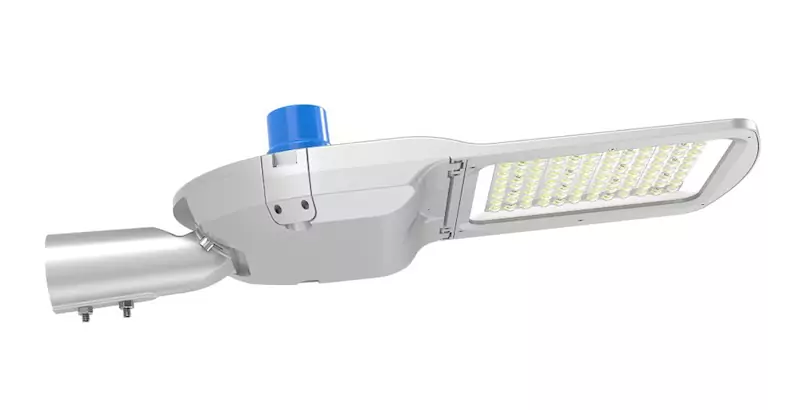

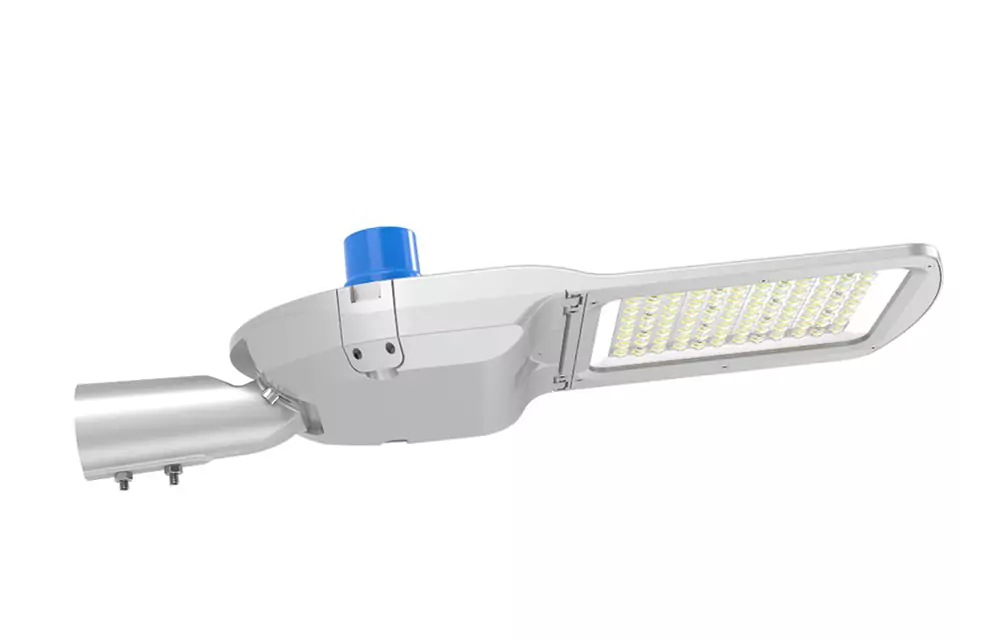

Photocell is Optional
3Pin/5Pin/7 Pin NEMA photocell, on/off function version and auto dimming version are optional

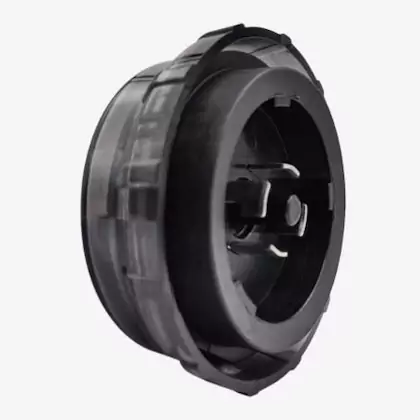

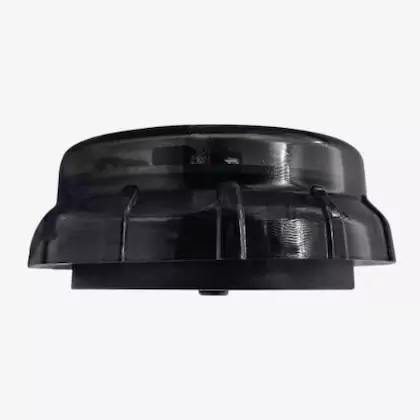

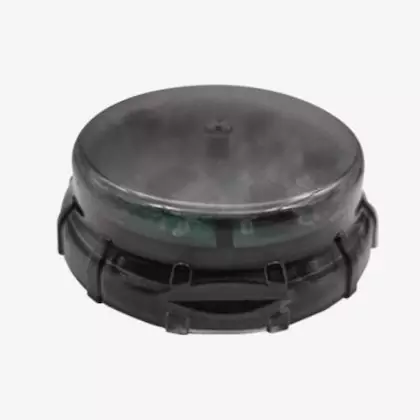

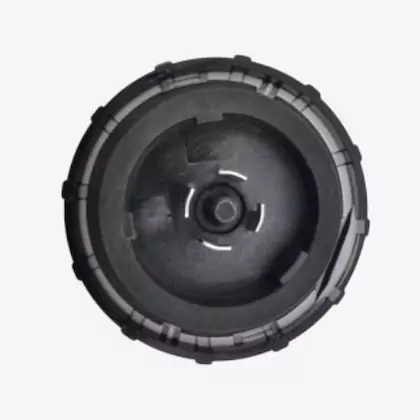

Zhaga Sensor is Optional
DALI 2.0 dimming interface, Lamp reflected light compensation.
Function: constant illuminance, auto dimming, mid-night automatically dim down. Suitable for Zhaga holder.
1-10V Dimmable and Dali Dimmable Optional

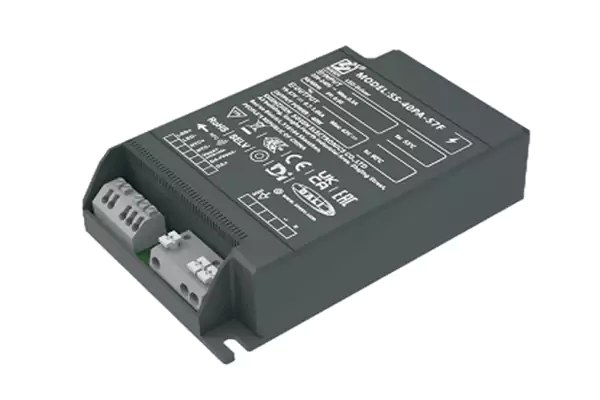

For AstroDim, 1-10V dimmable, we have it with Sosen driver VH-E & VH series.

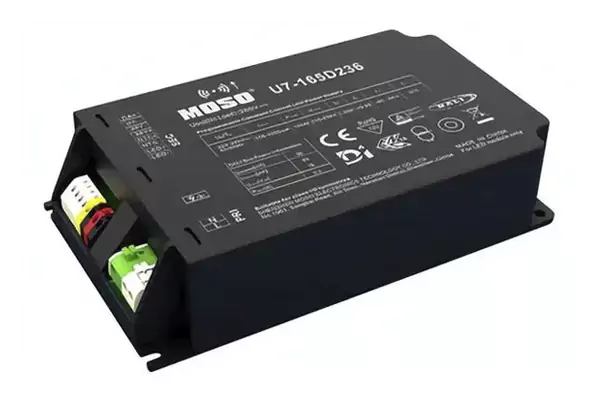

For Dali-2+D4I, AstroDIM, we have it with Moso driver U7 series.

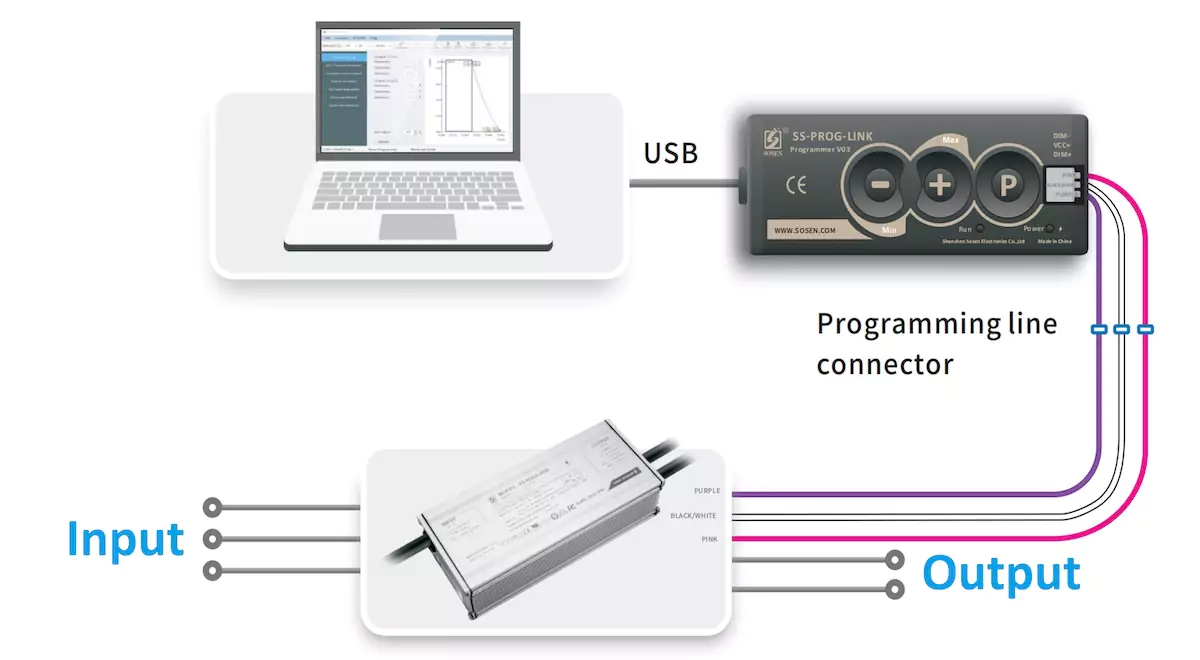

Programmer for Sosen driver
Different Installation Ways

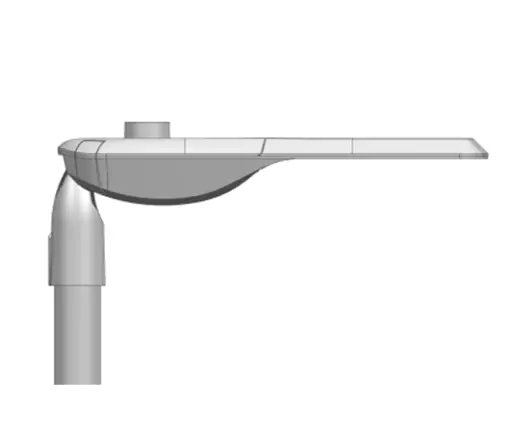

Vertical Installation

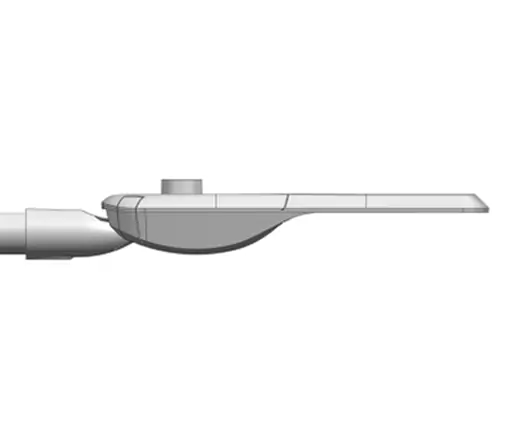

Horizontal Installation

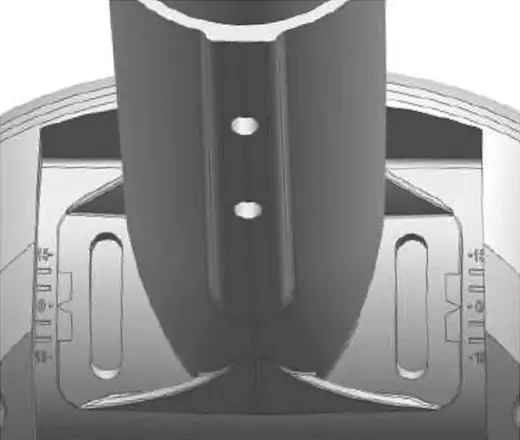

Adjustable Inclination System
Light Distribution Curve

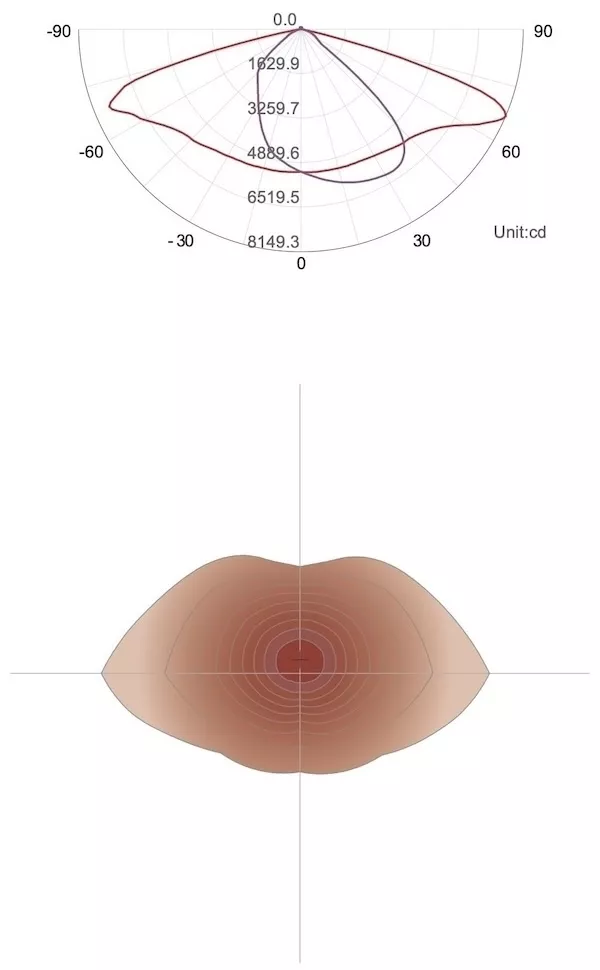

T2M

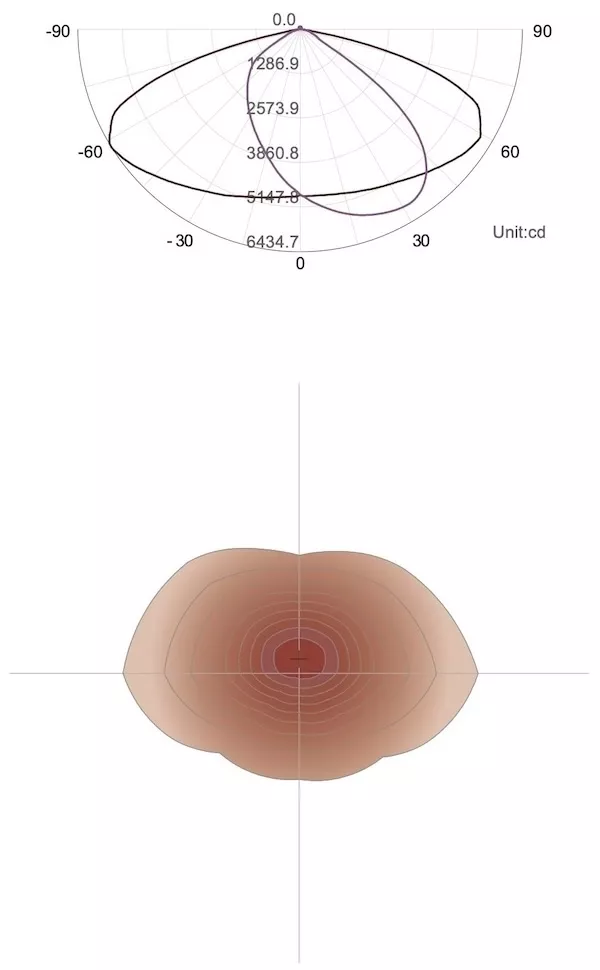

T2S

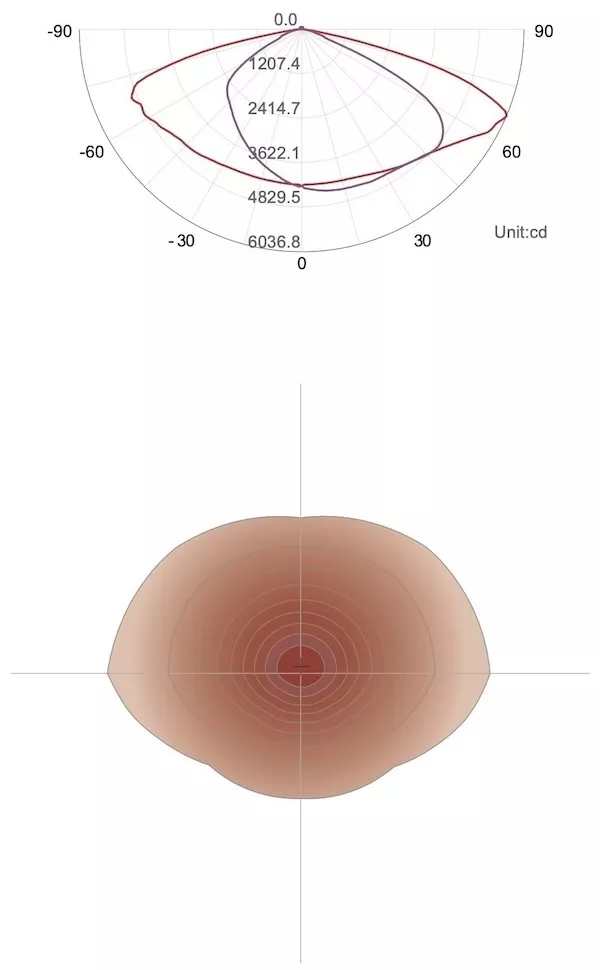

T3M(Type III)

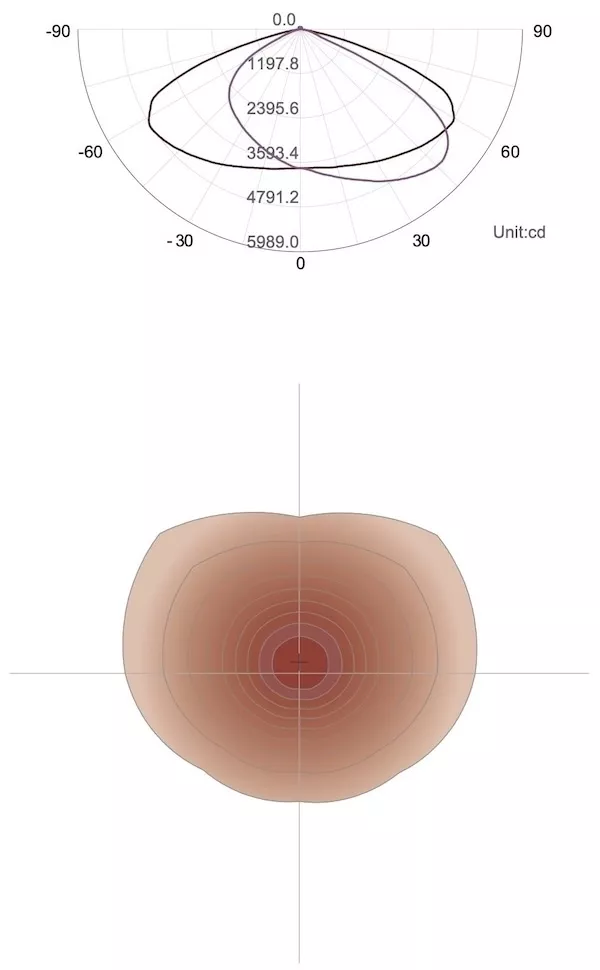

T3S

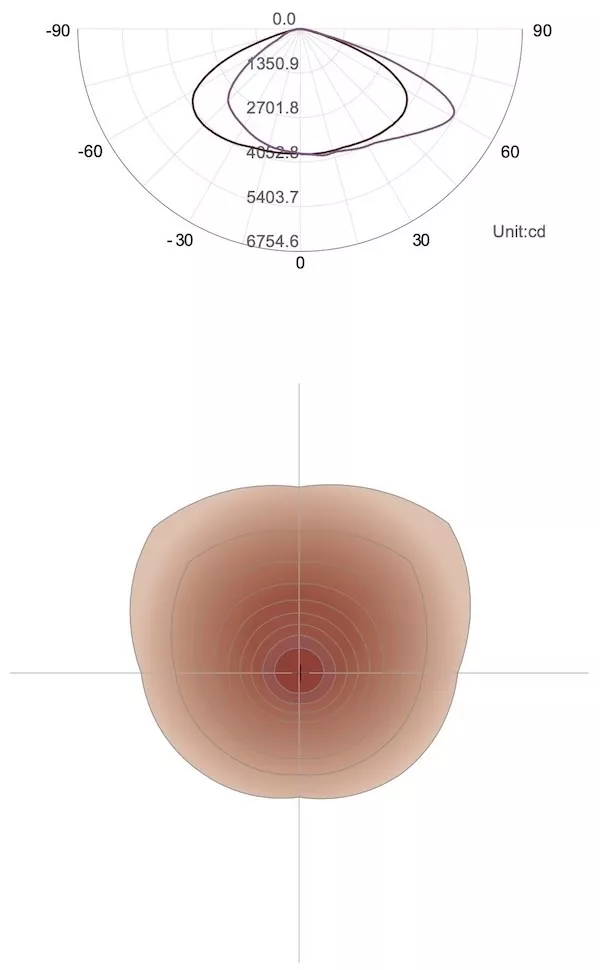

T4S

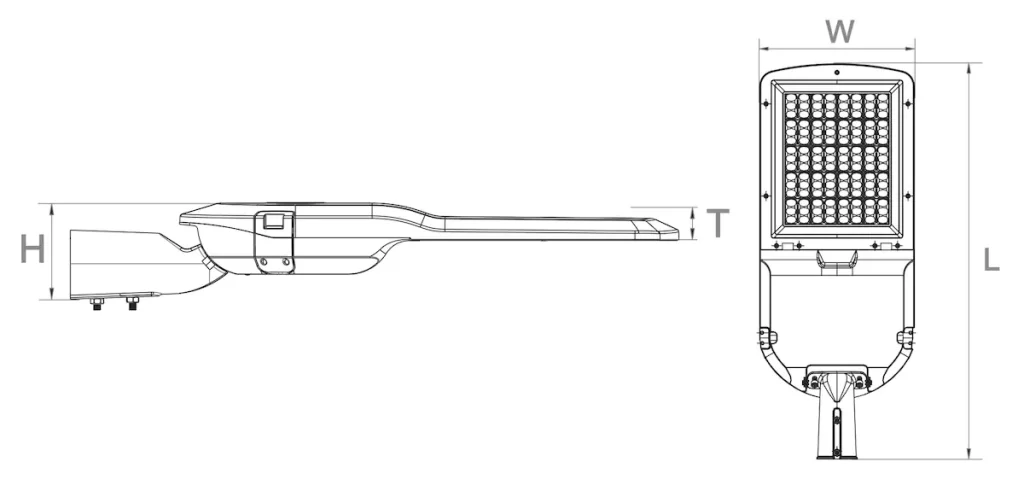

Product Size
| Power | L | W | H |
| 40W | 493mm | 174mm | 108mm |
| 50W | 493mm | 174mm | 108mm |
| 60W | 562mm | 200mm | 108mm |
| 80W | 562mm | 200mm | 108mm |
| 100W | 607mm | 240mm | 108mm |
| 120W | 607mm | 240mm | 108mm |
| 150W | 680mm | 260mm | 108mm |
| 180W | 680mm | 260mm | 108mm |
| 200W | 766mm | 300mm | 108mm |
| 240W | 766mm | 300mm | 108mm |
IES & LDT Files
HD Pictures
Buying from China vs. Buying from EU Stock
If you buy from China, it takes 70-80 days.

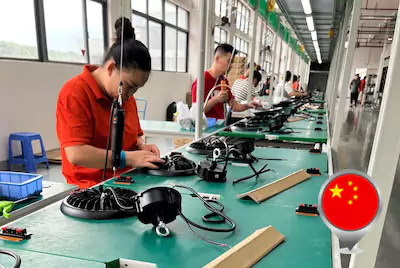

Production: 20-25 days
Ship by sea: 40 days
Custom clearance: 7 days
Transport to customers: 2-4 days
Customers receive the goods
If you buy from SEIPRO stock in EU, it only take 2-4 days.
Shipping from EU
Transport to customers: 2-4 days
Customers receive the goods
